EnergyETA Trace
15%
The installed base of smart meters will increase by 15% every year till 2025
50 % of decision makers
in IT, services, utilities, and manufacturing have either deployed IoT, or will deploy it in the next 12-24 months
$70 B
will be spent by global manufacturer on IoT solution by 2022
EnergyETA IoT devices platform

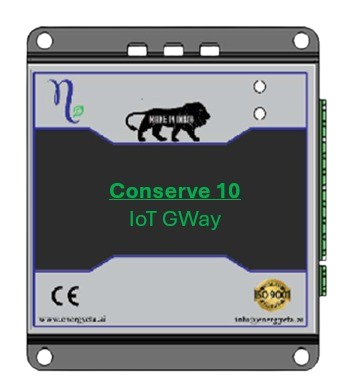

IOT Gway: Gateway to endless possibilities
Technical Specifications
- Provision for 4-20 mA (2 channel)
- RS 485 Modbus enabled
- Offline data storage (greater than 1 yr data)
- GPRS, Wi-Fi and LORA enabled module
- Highly reliable data transmission
- It can connect to any RS -485/Modbus-RTU protocol
- Dimension: 50 X 50 mm (std MFM size)
- 10 devices can be connected to one device (Energy meters, Heat meters, RTDs)
- Flexible mounting options
Application: Communicate with existing PLCs, Energy meters, VFD, Sensors etc

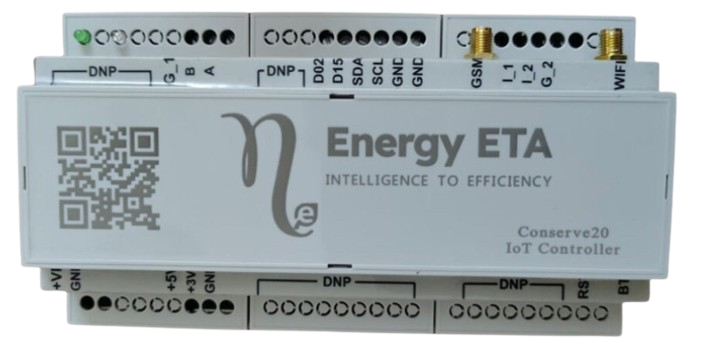

IOT Controller
Technical Specifications
- Provision for 4-20 mA and 0-10 Volt
- Can connect to AI/AO/DI/DO expandable upto 80 points
- RS 485 Modbus enabled
- GPRS, Wi-Fi , LAN and LORA enabled module
- Highly reliable data transmission
- Comes with pre-built IoT panel
- Flexible mounting options
- O2A capable
- Remotely configurable
- Buffer memory concept
Application: Chiller plant manager, AHU stand alone controls, Cooling Tower Automation, Secondary Pump controls

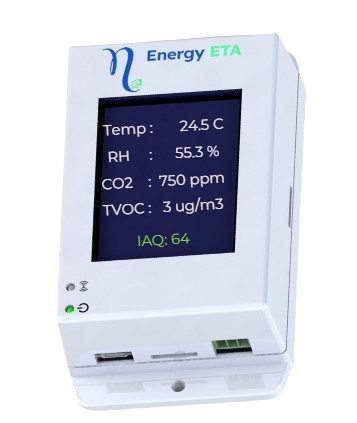

IoT enabled 8 in one IAQ sensor
Technical Specifications
- 8 in ONE sensor
- BME680 is a digital 4-in-1 sensor
- Gas, humidity, pressure and temperature
- RoHS compliant, halogen-free, MSL1
- ISO16000-29 standard “Test methods for VOC detectors”
- Gas pressure principal is used for VOC
- Ethane, Ethanol, Acetone, CO, Isoprene, 3 Butadiene.
- Outgassing from paint, furniture and/or garbage, high VOC levels due to cooking, food consumption, exhaled breath and/or sweating, Cosmetics etc
- Operating Temp: -40 to 50 C
Application: Hotel Room Smell Detection, Thermal Comfort for Offices, Industry Clean Room, AHU integrated controls

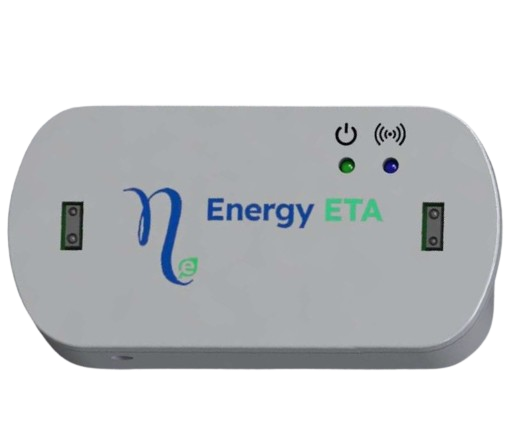

IoT enabled Counter + Lux sensor
Technical Specifications
- Proximity Sensor: Utilizes infrared technology to detect the presence of individual without any contact
- Ambient Light Sensor: Measures the intensity of light in the surrounding environment, typically measured in lux units.
- IoT Connectivity: Equipped with IoT communication protocols such as Wi-Fi for seamless data transmission to a centralized platform.
- Remote Monitoring: Real-time monitoring of device status and performance, with alerts and notifications for any anomalies or issues.
Application: Automatic lighting control in buildings, Street lighting management based on natural light, Detect occupancy, Measure usuage of an area based on count of people

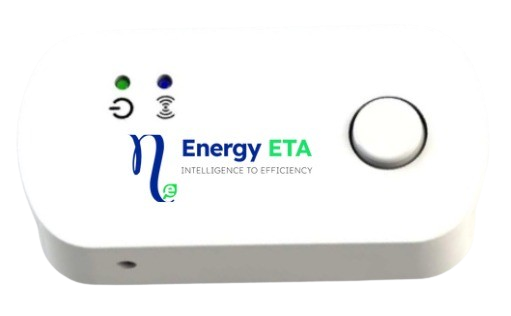

IoT enable dAMmonia sensor
Technical Specifications
- Ammonia gas sensor: Utilizes Electrochemical, metaloxide semiconductor (MOS) technology to detect the presence of Ammonia gas a specified range.
- IoT Connectivity: Equipped with IoT communication protocols such as Wi-Fi for seamless data transmission to a centralized platform.
- Remote Monitoring: Real-time monitoring of device status and performance, with alerts and notifications for any anomalies or issues.
- Scalability: Scalable architecture to support deployment across multiple locations and accommodate future expansion or additional sensor integration.
Application: Toilet Housekeeping mgmt, Indoor air quality

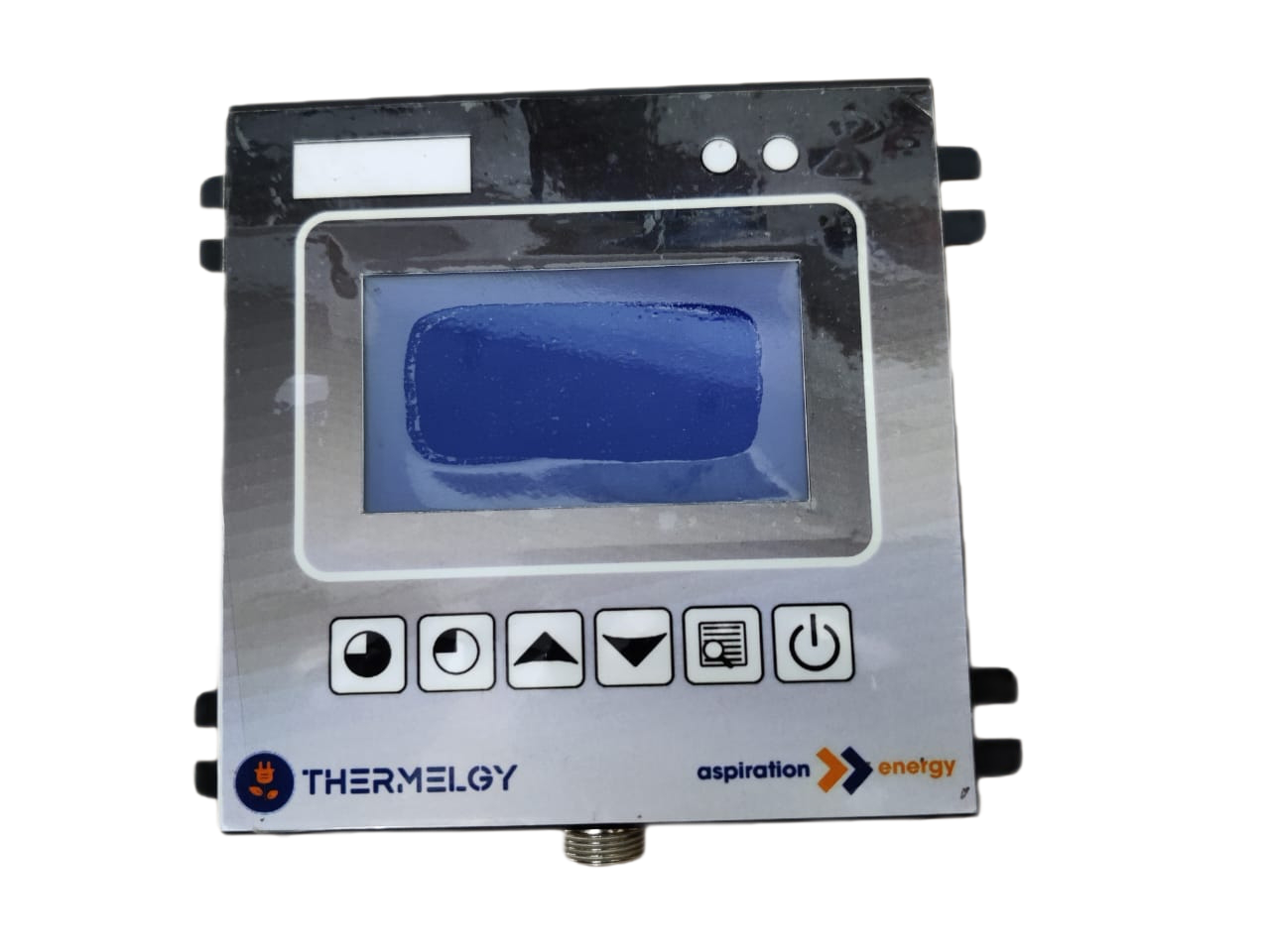

tMY Controller
Technical Specifications
- 14 channel relay outputs (Can directly control compressor, pumps, fan, chiller, AHUs etc)
- 8 sensor inputs (Thermistors -50K and 5K)
- 3 Phase voltage detection
- HMI – Graphical LCD, 6 switches
- Extendable wirelength
- Expansion valve provision for two channels
- Designed for two circuit heat pumps
- Configurable dip switches
- GPRS module (cloud connectivity)
- Highly reliable data transmission
- Offline data storage (greater than 1 yr data)- *.csv format
- 4-20 mA (4 channel)
